DesignPLUS Popovers

Popovers are an excellent tool for keeping your course pages clean and streamlined. They allow you to hide additional content until a user clicks a linked word or phrase.

Here is how they compare to similar tools:

  • Vs. Tooltips: Popovers require a click rather than a hover, and they can include rich media like images and videos, not just text.
  • Vs. Dialog Boxes: Popovers do not use a ‘lightbox’ effect, meaning they won’t dim the rest of your screen when opened.

Adding a Popover to a Content Page

You can add as many Popovers as needed to a content page within your Canvas course.

While editing content in your Canvas course, launch the DesignPLUS Sidebar by clicking on the 🚀 rocket ship icon at the top right corner of the screen.

  • Alternatively, press Alt/Option + Shift + D on your keyboard.

Within your paragraph of text, highlight the word or phrase you would like to make as a Popover.

  • Alternatively, place your cursor within a paragraph of text at the point where you want to insert the Popover.

In the DesignPLUS Sidebar, click on the ➕ Add New Elements tab.

Click the Popover button (found under the Interactive Content or Recently Used Tools headings).

  • Alternatively, use the Search textbox to search for Popover. DesignPLUS will show results in real-time. Click the ✖️ icon to clear your search.

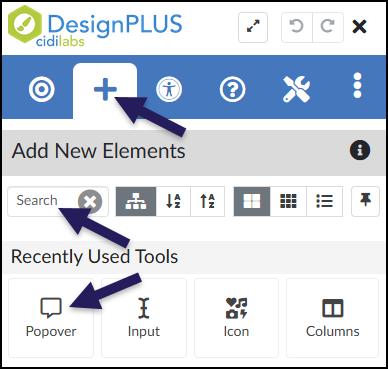

A screenshot of the DesignPLUS Sidebar demonstrates accessing the 'Popover' tool. An initial arrow points to the 'Add New Elements' tab in the top navigation bar, which features a large plus sign and is the currently active view. Within the 'Add New Elements' panel, two other arrows highlight the primary methods for finding the tool: one points to the 'Search' input field, and the other points directly to the 'Popover' button, which has an icon of a rectangular speech bubble and is located in the 'Recently Used Tools' list. Other un-highlighted tools like 'Input', 'Icon', and 'Columns' are also visible nearby.

Content Panel

In the following example, when a student clicks on the acronym LMS, a Popover appears displaying the words “Learning Management System” and an image of the Canvas Learning Management System Dashboard.

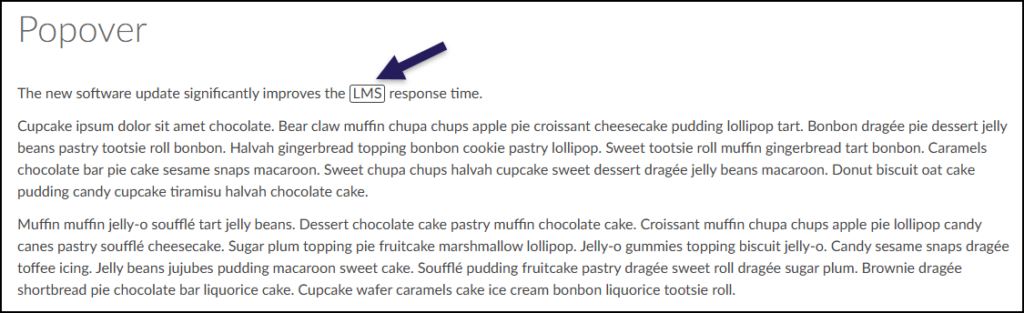

A screenshot of a web page example titled "Popover", showing how the tool is used to create an interactive link within course content. The central focus is a sentence that reads, "The new software update significantly improves the [LMS] response time." A dark purple arrow points directly to the bracketed abbreviation "[LMS]". This visual highlights "[LMS]" as the interactive phrase which, when clicked by a user, would display the popover's additional content. The surrounding placeholder text is visible below.

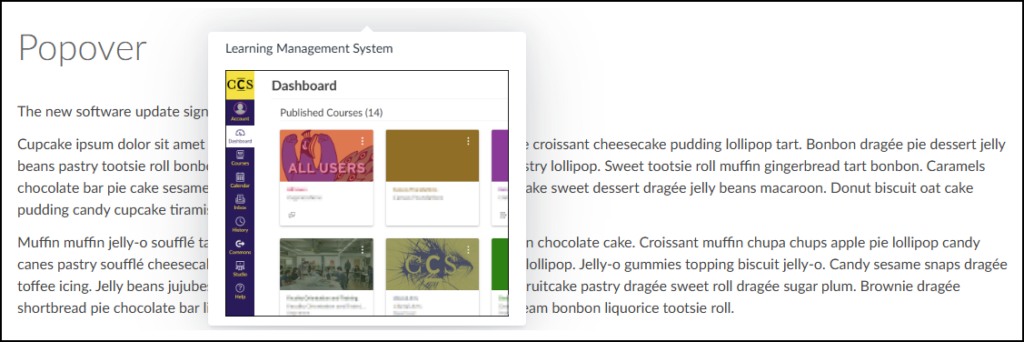

A screenshot of the Canvas LMS displaying an active example of the DesignPLUS 'Popover' tool. A popover window, titled 'Learning Management System', floats above the underlying page content and partially obscures the placeholder text. The content within this popover window consists of a detailed screenshot of a Canvas Dashboard, complete with its global navigation sidebar and multiple course cards that include both text and images. This visualization demonstrates how the Popover tool can embed rich, complex media and information directly on a page upon interaction.

It is highly recommended to use the Content panel to make any updates to your Popovers. This panel provides a dedicated textbox to safely edit the Trigger Text.

  • Trigger Text: The visible word or phrase that students click on.
  • 🔁 Convert to Dialog Box: Convert the Popover to the Dialog Box tool.
A screenshot of the 'Content' configuration panel for the 'Popover' tool within the DesignPLUS Sidebar, presented on a blue header with a collapse arrow. The panel contains a label 'Trigger Text' above a text input field which currently holds the acronym 'LMS'. Below this input field is a button with a convert icon (opposite arrows) and the text 'Convert to Dialog Box', indicating an option to transform the popover into a dialog box.

After editing the text in the Content panel, press Enter on your keyboard or click anywhere outside the text box to update the Canvas Rich Content Editor (RCE).

Inside the Canvas RCE, locate the light gray area tagged with Popover Content. You can use this space to add any text, images, videos, or other media you want to display in your Popover.

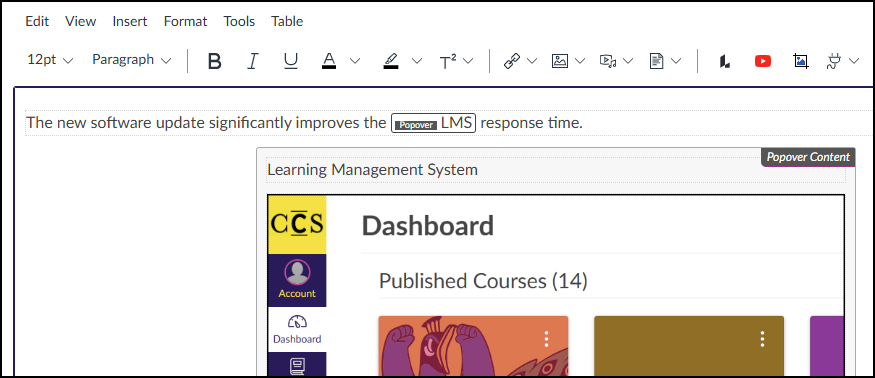

A screenshot of the Canvas Rich Content Editor in edit mode, demonstrating the DesignPLUS Popover tool applied to text on a content page. The line of text, 'The new software update significantly improves the [Popover LMS] response time,' shows 'LMS' as the popover trigger, marked by a grey label. Positioned directly below the sentence is a large, dedicated content box for this popover, distinguished by a dark grey label 'Popover Content' and the title 'Learning Management System'. This box contains an embedded screenshot of a Canvas dashboard with various course cards, representing the rich content that will pop up when a user interacts with the 'LMS' trigger in the final, published view.

Save or Save & Publish your content page to test out the Popover.
